OVERVIEW

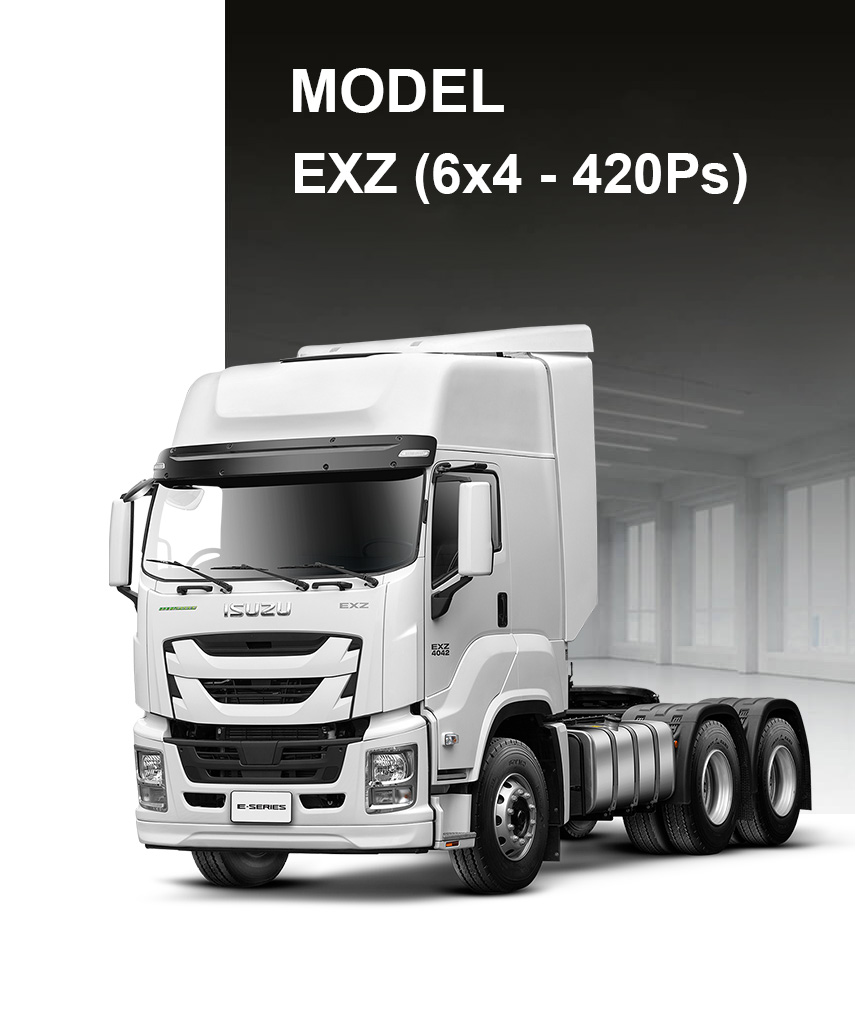

model Tractor Head ISUZU - EXZ 6x4 420PS

Gross vehicle mass 24,000 (Kg)
Gross combination mass 48,000 (Kg)
Max towed weight designed / authorized 40,000 / 38,770 (Kg)
Max. Power 420 (308) / 1,800 Ps(Kw)/rpm
Max. Torque 2,060/830~1,400 Nm/rpm
Emission standard Euro 5
Manufacturer name QINGLING MOTORS CO., LTD
Manufacturer address No.1 Xiexing Road, Zhong Liang Shan, Jiu Long Po District 400052, ChongQing (China)
Origin China
Suggested retail price 1,747,440,000 VND

ENGINE

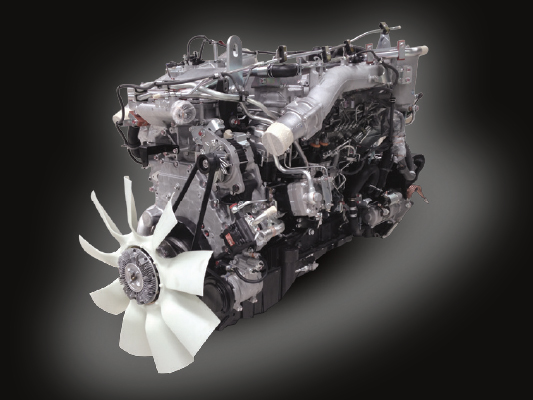

POWERFUL COMMON RAIL ENGINE

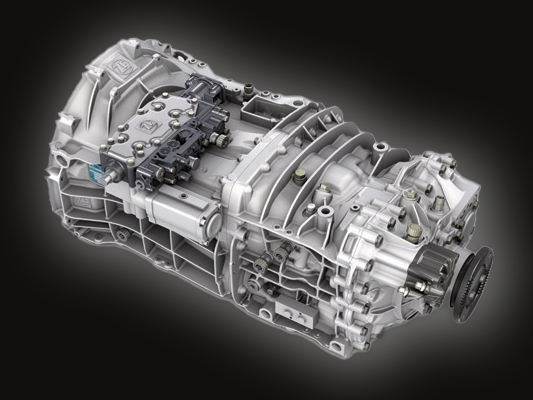

EUROPEAN STANDARD ZF TRANSMISSION

performance

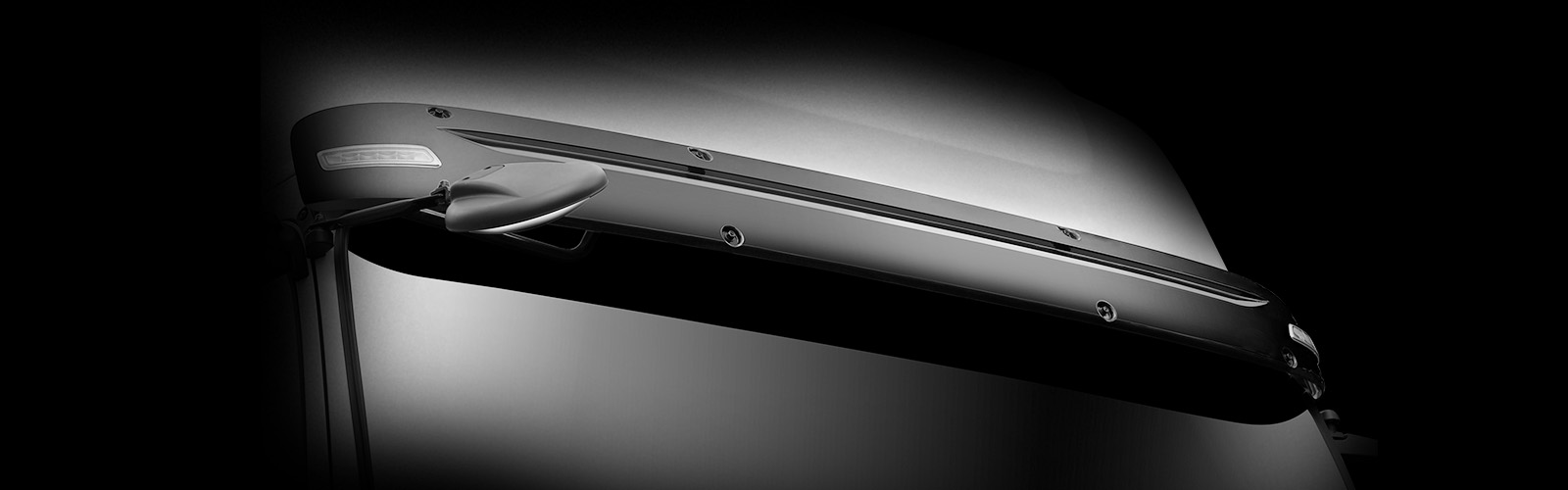

Exterior

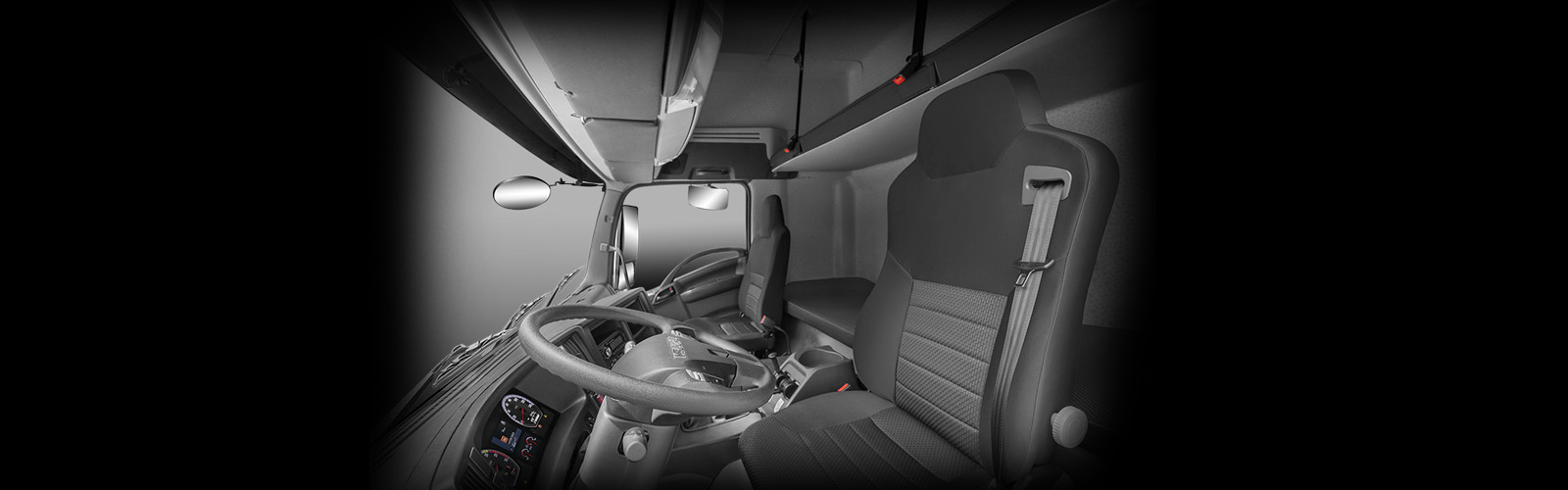

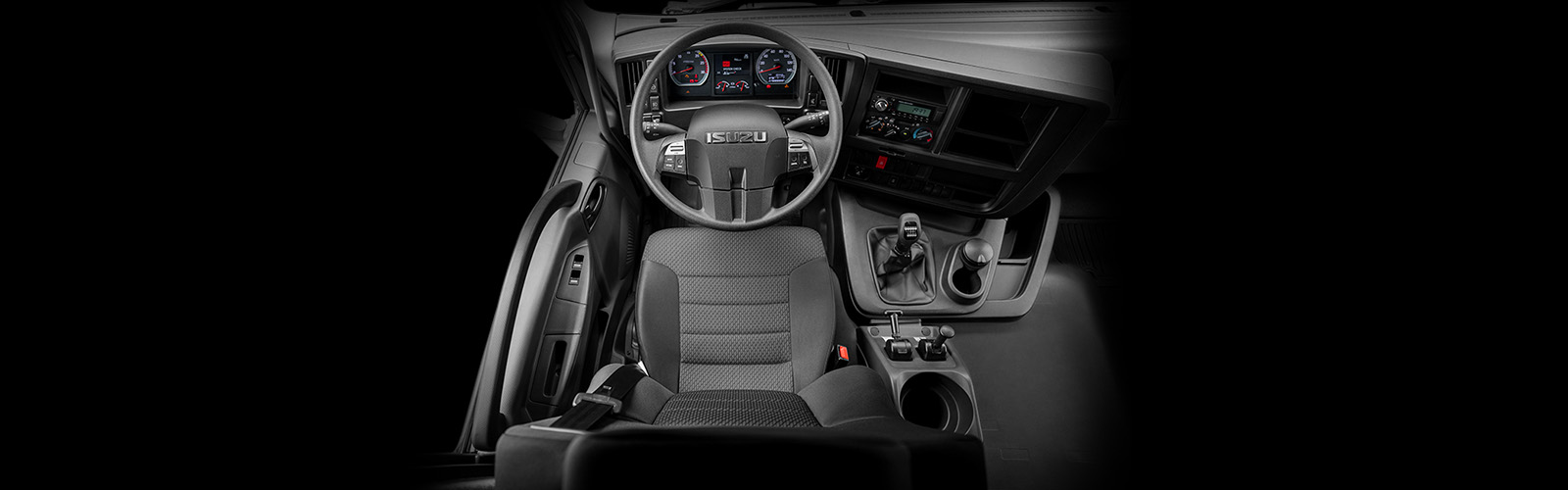

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
BASIC SYSTEMS
CONVENIENCE
SAFETY FEATURES
Gross vehicle mass Kg 24,000
Gross combination mass Kg 48,000
Kerb mass Kg 9,100
Max towed weight designed / authorized Kg 40,000/38,770
No. of seats 2

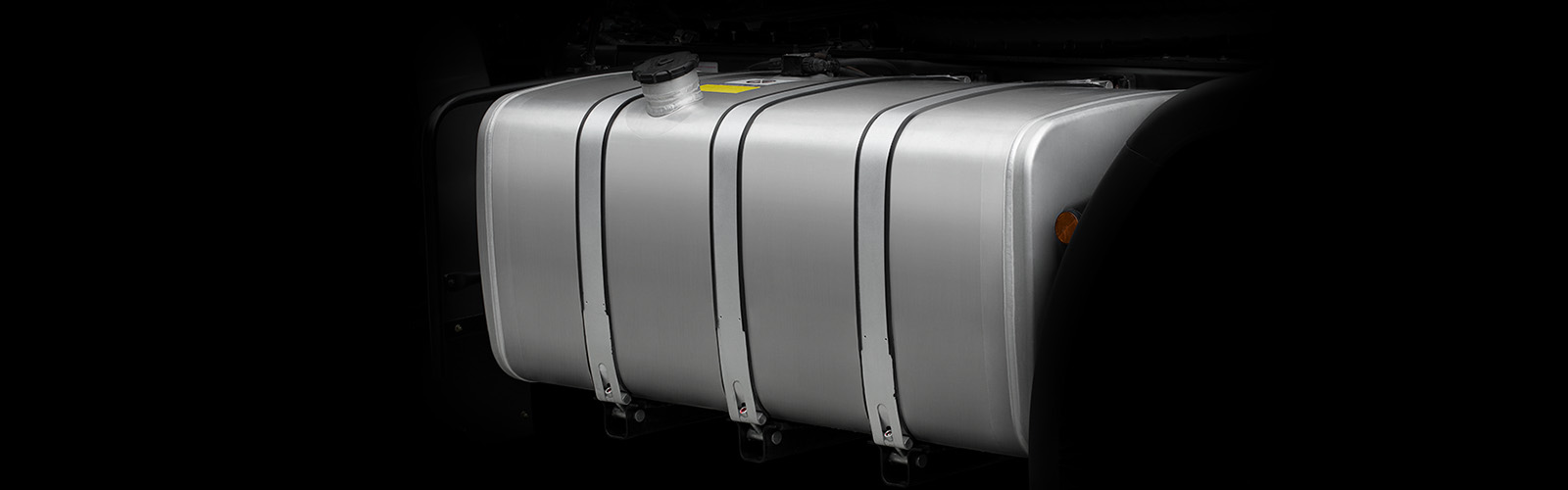

Fuel tank capacity Liters 600
Urea tank capacity Liters 40
Overall dimension mm 6,895 x 2,500 x 3,970
Wheelbase mm 3,385 + 1,370
Front – rear treat mm 2,065 / 1,875
Model 6WG1-TCG52
Type 4 stroke, 6 cylinders, in line, turbo charged – intercooler
Emission standard EURO 5
Bore x stroke mm 147 x 154
Displacement cc 15,681
Max. Power PS(kW)/rpm 420(309)/1,800
Max. torque Nm/rpm 2,060/830~1,400
Transmission
ZF16 (16S2230TO)
16 forwards, 2 reverse
Final gear ratio 3.909
Electric axle shift With
Driving system 6×4
Steering system Recirculating ball with hydraulic assisted
Suspension system front – rear Leaf springs, shock absorber
Brake system front – rear Full air brake, drum type
Tire size front – rear 12R22.5 – 18PR
Generator 24V-60A
Battery 12V-120Ah x 02

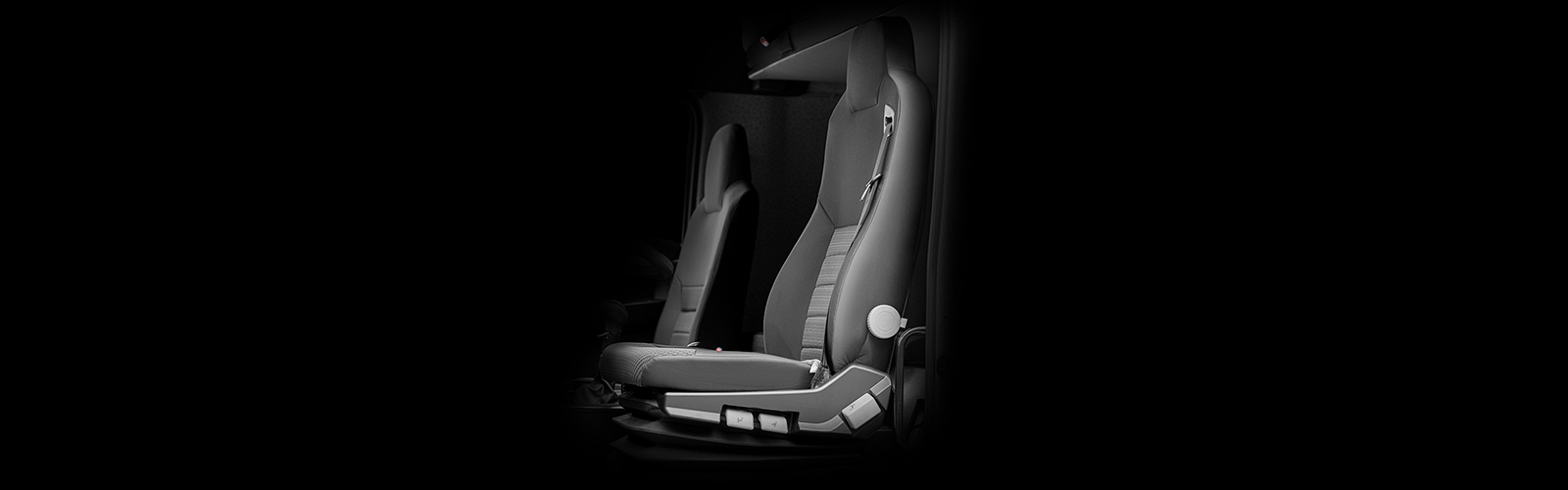

Driver air seat With
Central door lock With
Auto power windows With
Electric rear mirror With
Headlamp leveling With
Air conditioner With
USB-MP3, AM/FM Radio With
USB charger With
Double-deck berth With

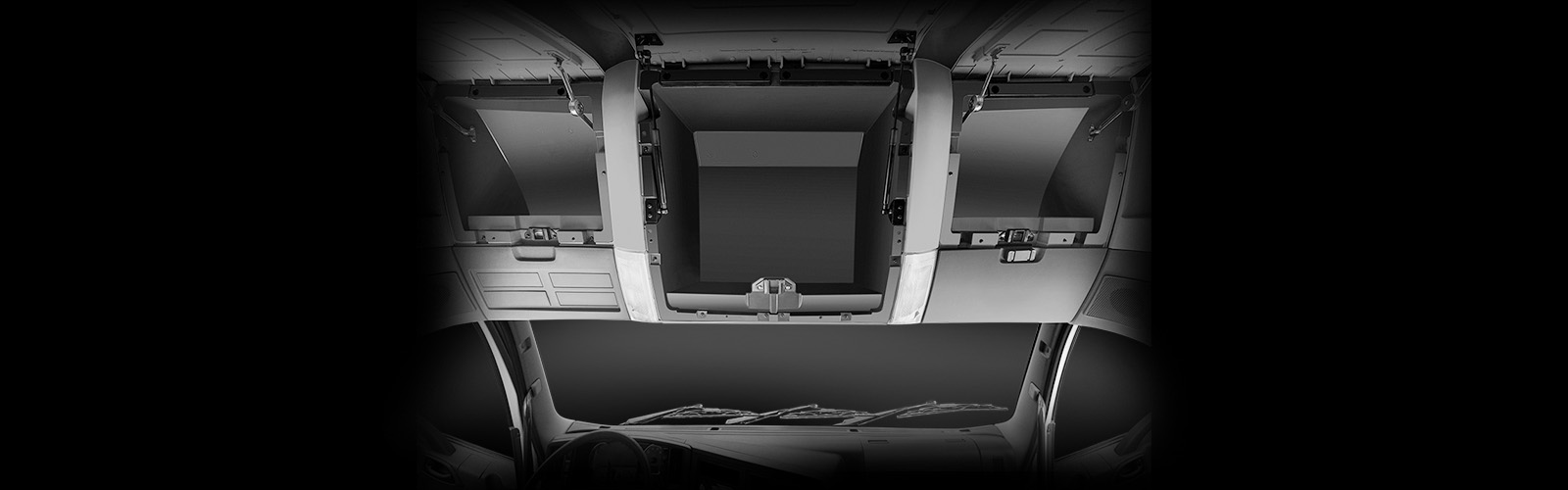

Overhead storage With
Bedside table With
Cabin room lamp With
Reading lamp With
ABS With
Cruise control With
Speed limit With
3-points seatbelts With
Exhaust brake With
Trailer parking brake With
